Main window for working with the selected car

This section is the same for ALL vehicles shown in in the form of icons on the main screen of the program. From model to model, filling this section may change. Some functions that are in one the car may not be in another and vice versa. The section is universal tool for reading\erasing errors, like in some a specific module of the car, and in everything at once. Produce special service functions for some specific modules, as well as programming PCM\TCM modules. In addition to everything, this is the section in the tab “Special functions” there is functionality for working with PATS of Ford cars.

Note

The PATS section is only present in those vehicles where the UCDS software supports work with PATS and the functionality is tested. This applies to cars Ford Focus 2\Mondeo 4\Ford Focus 3\KUGA 1\KUGA 2\Ford Explorer 2011

Warning

Attention! To access the PATS functions, the adapter must have license “PATS”

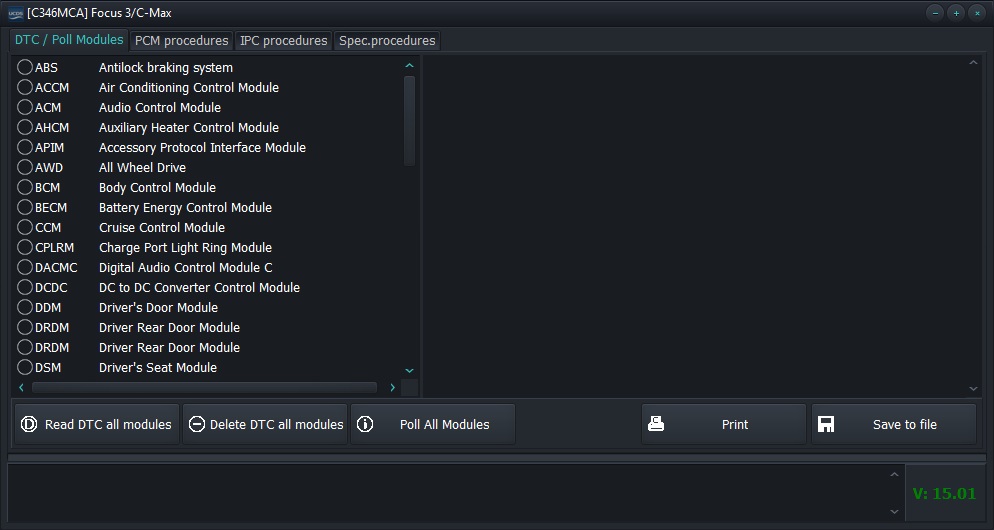

The main form on the example of Ford Focus 3

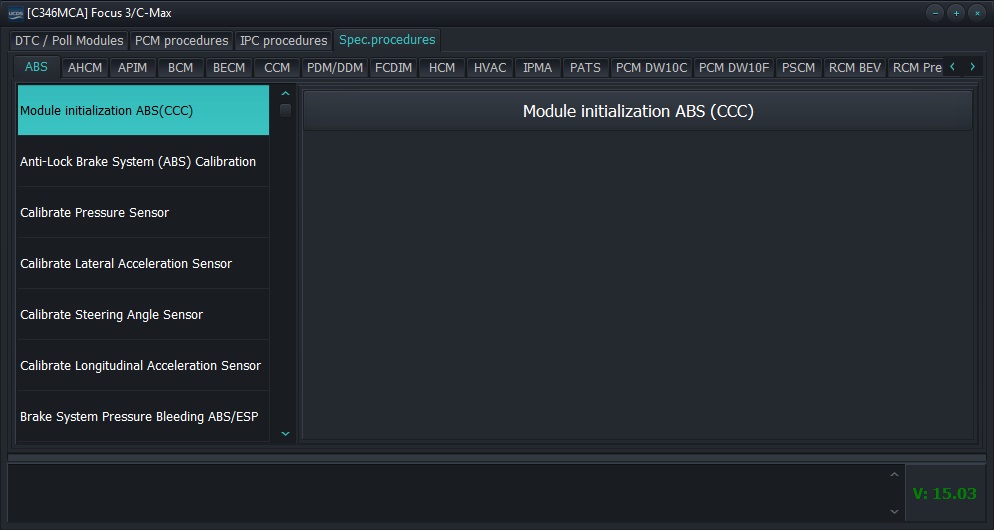

Examples of sections are shown below

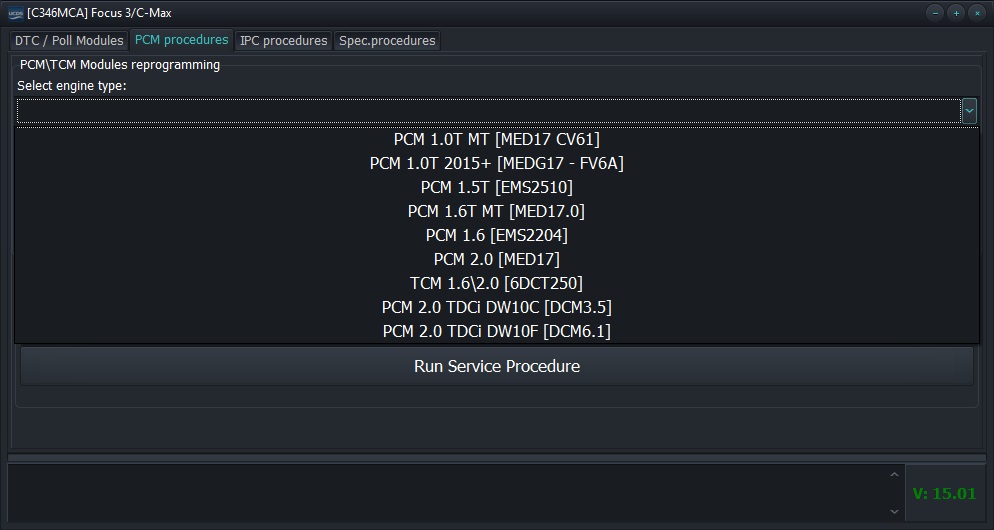

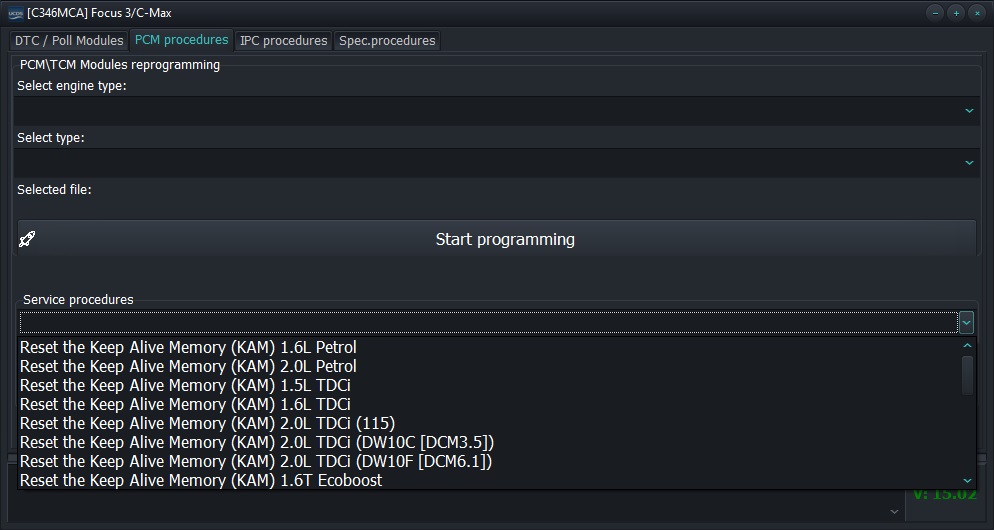

Module programming	Select service function

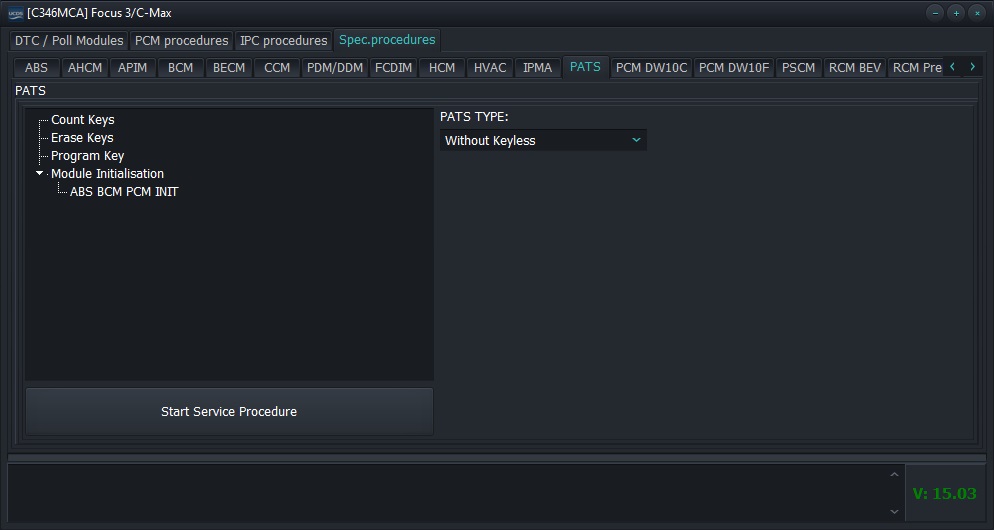

Functions for modules	PATS Functions
