Looking for Mondeo 2015+ CCM Direct Config Data

[DanMc85]

Hey guys,

I am trying to install a newer C-CM module... looking to see if it is possible to get the 2017 Stop and Go feature in an older model year Fusion/Mondeo.

Can anyone with a Mondeo (2015+, 2016 Preferred) with Adaptive Cruise Control go into Mondeo CCM Direct Config and read their module for me?
I am looking for the data to configure it (not the as-built data), UCDS will read all the internal memory locations for configuration.

The "Save to File" XML Hexadecimal format is preferred, if you can open it in notepad, copy and paste it.
If desired, DE01 can be left out of the file... I don't need the VIN.

IPMA module xml file would also be helpful. If both are available

Examples: I am pretty sure the data shown on mine is wrong... need all the selections, not just the two shown.



Thanks!

[autochampion]

Insert VIN from cars with CCM in "Load ASBUILD from ETIS". After write, change VIN from the donor to your own. No more data need, the remaining values of the parameters are learned.

https://wiki.ucdsys.ru/doku.php?id=mondeo_5:m5ccm

[DanMc85]

Insert VIN from cars with CCM in "Load ASBUILD from ETIS". After write, change VIN from the donor to your own. No more data need, the remaining values of the parameters are learned.

https://wiki.ucdsys.ru/doku.php?id=mondeo_5:m5ccm

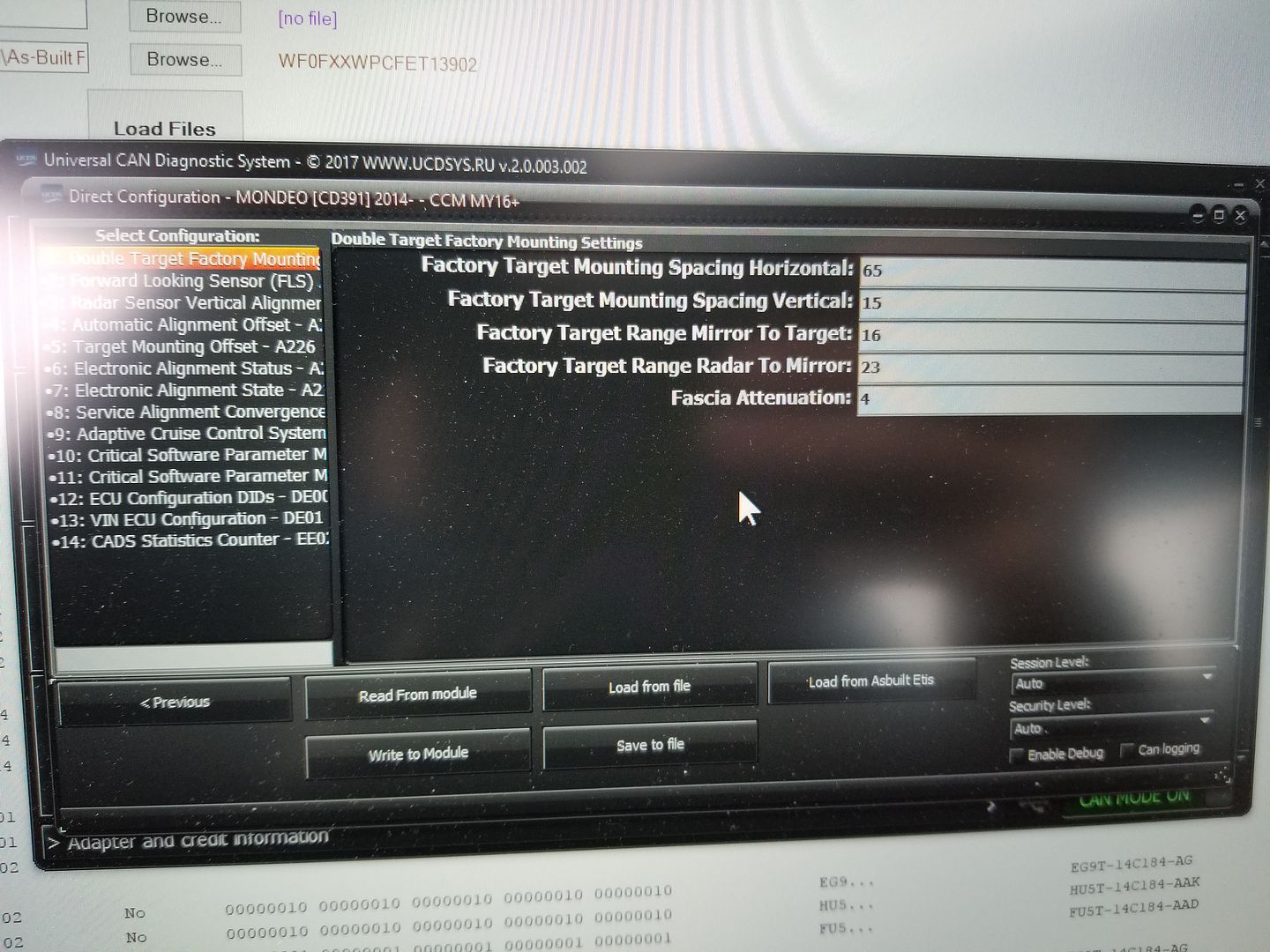

I am pretty sure the Double Target Factory Values are not learned... I think I lost them doing a cross platform firmware flash... Lincoln Continental to Mondeo/Fusion (same CCM Module).

[autochampion]

Insert VIN from cars with CCM in "Load ASBUILD from ETIS". After write, change VIN from the donor to your own. No more data need, the remaining values of the parameters are learned.

https://wiki.ucdsys.ru/doku.php?id=mondeo_5:m5ccm

I am pretty sure the Double Target Factory Values are not learned... I think I lost them doing a cross platform firmware flash... Lincoln Continental to Mondeo/Fusion (same CCM Module).

These parameters are automatically entered when training the CCM through the service functions. You must manually or through downloading in ETIS fill only DE00 and DE01. Start training and ride until the end of the procedure.

But there may be a problem if the software does not fit your car to appear error U0300. But it occurs only when the unit is trained, the parameter, I do not remember exactly, "Convergence" and "Unconvergence". Turn on "Convergence" manually and check.

[phpixde]

Dan you've got an pm.
